SOL-7R230

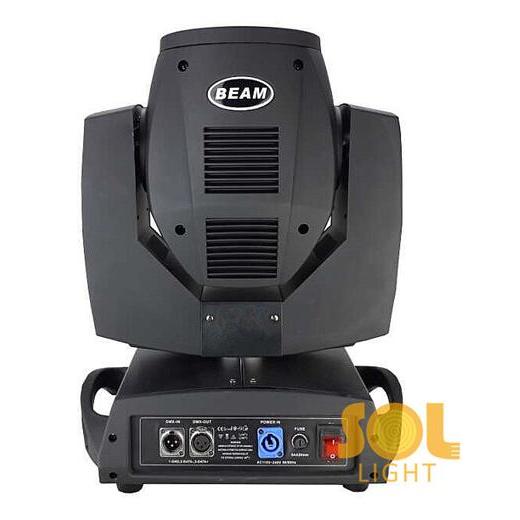

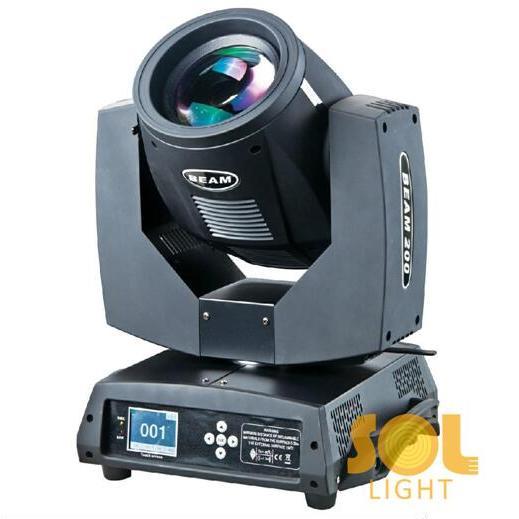

230W 7R Beam Moving Head Light IP20
Specification
Video
Specification
Video

Electrical Info :


Lamp: Philips 7R or YODN 7R  (life:2000 hours Color temperature: 8000K)

Channel mode: 16/20 DMX512 Channel

Pan scan:540°(16bit) Electric correction

Tilt scan:270° (16bit) Electric correction

Amazing dot matix, four tact switch, 180° turning show

Color wheel: one color wheel, 14 kinds of color chips in one color wheel

Gobo: 17 gobos

Effect Wheel:  Rotation eight prism, effect move , frost

0-100% mechanical dimming, mechanical dimming and free dimming available.

strobe macro control available.

Lens optical system achanical fouce .beam angle 0~4°

Over heat protection

Power Input: 100-240V,50/60Hz

Power Dissipation:230W

IP level : IP20

Magnetic ballast and AC/Dc power supply

Product Size:523×337×511mm

Packing Size: 635X440X725

N/G.W:19.5kgs/21kgs
