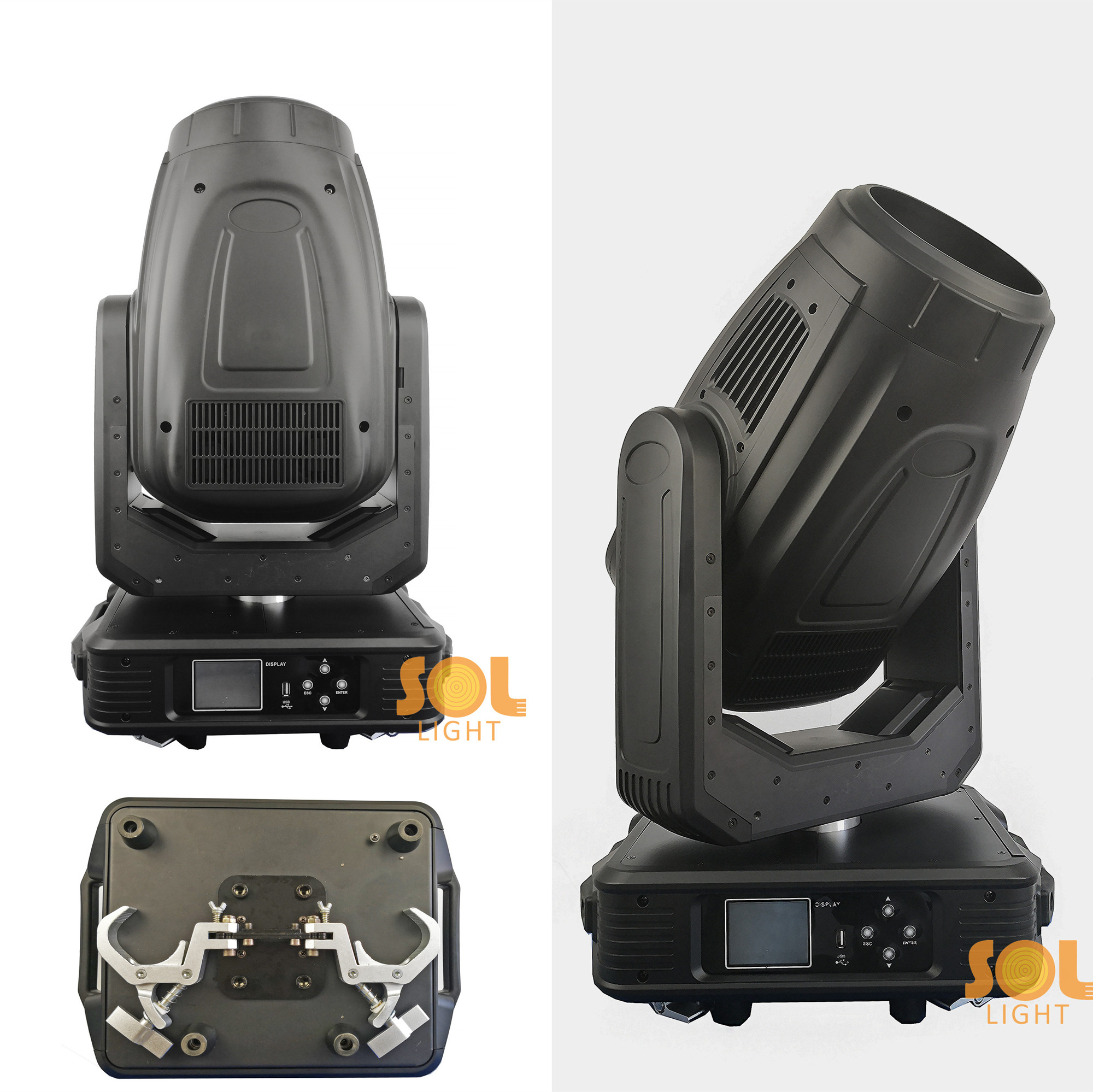

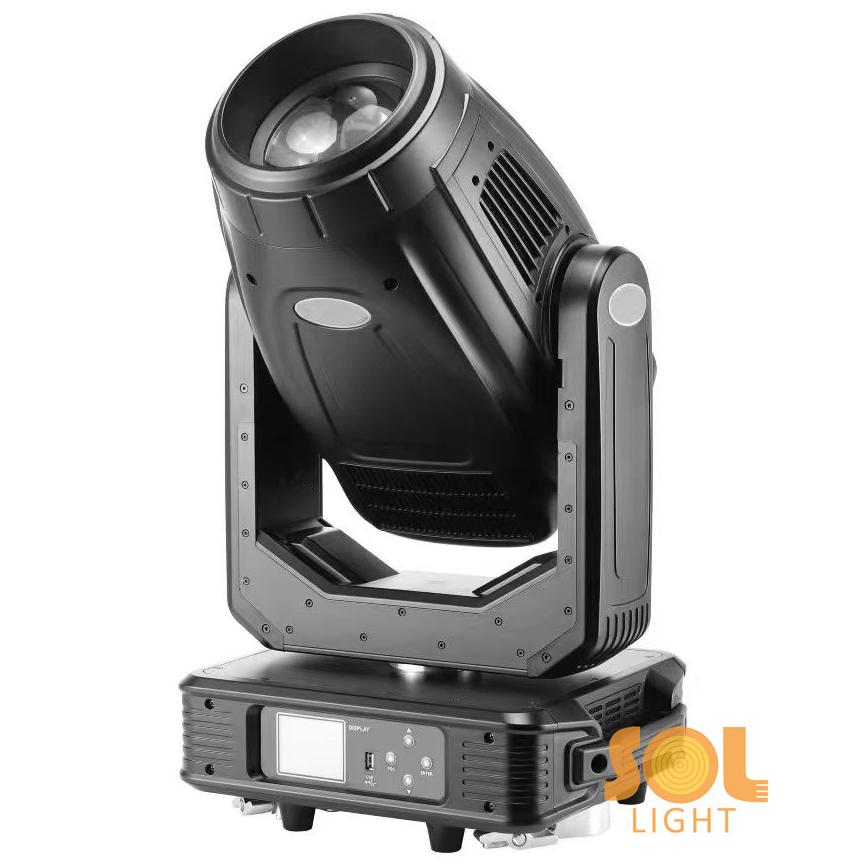

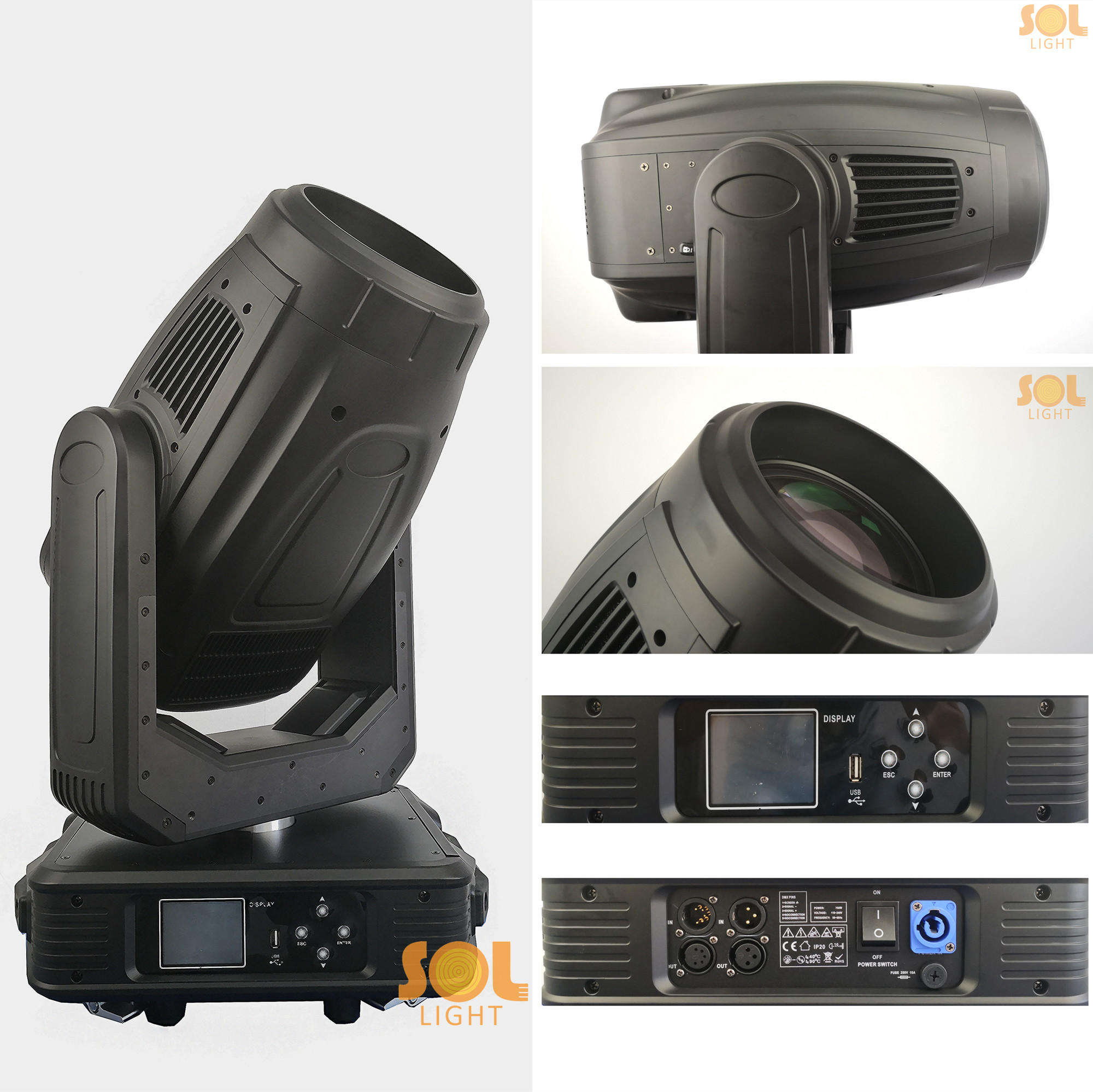

Osram Megapointe 480W Beam + Spot + Wash 3-in-1 Moving Head Light with CMY Effect

This hybrid moving head light uses the OSRAM SIRIUS HRI 470W XL light source with high brightness and long focal length,

the front group of light emitting lens is 160MM, and the new optical system makes the small angle smaller and the large angle larger.

More prism effects , with two layers of prism wheels and 6 prisms, which can be superimposed to produce up to 15 different prism effects;

dynamic effect wheels, which can produce more dynamic patterns;
CMY color mixing, which can make the color transition smooth , easy to plug and replace the pattern plate .
Specification
Video
Specification
Video

Electrical Info :


Input voltage range: AC 100-240V, 50/60Hz

Power consumption: 600W

Power connector input

Data in/out: 3-pin and 5-pin XLR

Size & Weight

Product size:   410x250x690mm;

Flycase:  930x520x910mm;

Carton box:  800x420x500mm;

N.W: 24.5 kgs;

G.W:  29 kgs(carton box).

G.W:  86 kgs(Flycase).


Details :


Lamp: OSRAM SIRIUS HRI 470W XL

Life time:1500Hours

Advanced optical system, clear, sharp

Zoom range 2.5~45°

Static gobo:   14 gobos + white.

Rotation gobo:   9 gobos+ white, changeable;

Animation gobo: Could be used by separately or combined with other gobo

11 Colors+2700K +3200K+White+CMY Prism

Rotation prism wheel 1 :8 Facet prism+ Linear 6 facet prism +cylindrical prism

Rotation prism wheel 2 :8 Facet prism+ Linear 6 facet prism +doule layer prism

Prism wheel 1 and Prism wheel 2 can overlay

Display: Color display,4-touch buttons

Protocols: DMX512, RDM

Channel Mode:34/39CH

USB connector can set DMX address with power and upgrade the software.

Pan: 540°; 8Bit/16Bit

Tilt: 270°; 8Bit/16Bit

Automatic Pan/Tilt position correction

Magnetic sensor position lock, more accurate than classic optical sensor
